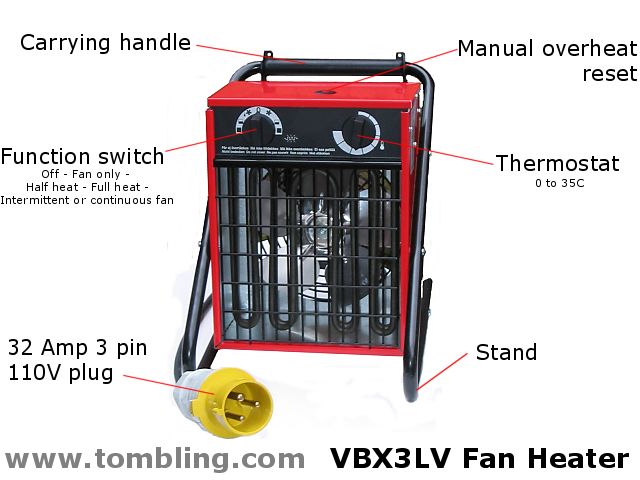

110V portable heater

The VBX3LV 3kw 110V portable fan heater is designed for use with 110 volt electricity supplies and is fitted with a yellow 32 amp 3 pin BS EN60309 yellow plug.

It is splash proof (protection class IPx4) and is suitable for use on construction sites, and in factories or workshops which require the use of 110v portable electrical equipment.

Features

• Flexible – Fan only (for summer use), 1.5kw or 3kw output
• Portable – lightweight, built in stand and handle
• Durable – corrosion proof metal case, stand and fan
• Reliable – stainless steel elements. Sealed for life, maintenance free fan motor
• Efficient – 0 to 35C adjustable thermostat for accurate temperature control
• Safe – integral overheat cut-out with manual reset

Activair 110v portable fan heaters

Specification
Model		VBX3LV
Element rating	W	3000
	Btu/hr	10230
Voltage	V	110
Power stages	kW	0 - 1.5 - 3.0
Maximum phase current	A	28
Connection		1.8m lead & 3 pin 32A plug
Noise	dBA	44
Air volume	m3/h	290
Max. temperature rise	C	29
Built in thermostat	C	0 - 35
Protection class		IP x4
Weight	kg	6
Width	mm	275
Height	mm	320
Depth	mm	320
Price ex. delivery & VAT		£329.99
Price inc. delivery & VAT

Approvals for the BX3LV 110v heater

The BX3LV portable 110v heater has been tested for safety in accordance with the LVD directive, for electro-magnetic interference in accordance with the EMC directive, and is CE marked.

Electricity supply requirements

The VBX3LV portable 110v fan heater requires a 32amp 110v 50hz electricity supply. It is suitable for use in the UK and Europe.

It is not suitable for American 60Hz electricity supplies.

The VBX3LV 110v portable heater is supplied with a 1.8m heavy duty lead, fitted with a 32A 3 pin yellow BSEN60309 (BS4343) plug.

Customers should check they have 32A sockets, not the smaller more common 16A ones before ordering.

Accessories for VBX3LV 110v fan heater

3000VA continuous rated vented heater transformer	230V input - 110V out via 1 x 32A and 1 x 16A outlet.
14m extension lead	110V extension lead, 32A plug to 32A socket.

Guarantee

The VBX3LV 110 volt heater is built to the highest standards, and we are confident it is totally reliable. However in the unlikely event that a fault does occur, it has a 1 year return to base warranty.

What you need to know before buying a 110v heater:

• What size space heater do I need? - everyone should read this!
• What size socket or isolating transformer do I need? - important information!
• How warm are electric heaters?

The Activair VBX3LV portable 110 volt heater is a safe replacement for bottled gas heaters on building sites, and in factories and workshops where the use of 240V portable equipment is prohibited.

For maximum efficiency the built in thermostat regulates the temperature ensuring the heater only runs when it is needed. During warm spells the VBX3LV will operate in ‘fan only’ mode for cooling.
