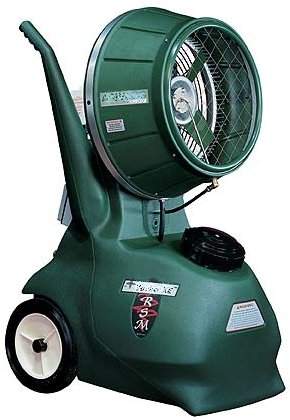

Portable evaporative cooling fan - DISCONTINUED

portable cooling fan
click to enlarge

This item is discontinued

The HRSM portable evaporative cooling fan combines the proven nozzle-free design of the XE1500 evaporative cooling fan with a recirculation tank for portable high volume cooling. It produces 5382 m3/hr (3180CFM) of cooled air that can be felt up to 9m (30ft.) away.

The HRSM portable evaporative cooling fan is ideal for use where a mains water supply is not available, for example on construction sites, at outdoor events, in loading bays, etc.

The HRSM is completely portable, it has sturdy moulded handles and 250mm semi-pneumatic wheels that allow it to be easily moved from place to place.

Construction

The HRSM is engineered for harsh environments, all units have stainless steel hardware, watertight electrics, and thick UV stabilised thermo-plastic casings. They are equipped with:

  • Toggle on-off switch
  • Tilting fan assembly
  • Easily accessible adjustable flow (fogging) control
  • Automatic fill with float cut-out, for continuous operation
  • Overflow port, water hose connection and liquid level gauge
  • Drain plug for easy emptying and cleaning
  • Wide mouth opening for manual filling

The large 68 litre tank contains a powerful submersible pump which recirculates all drainage water and supplies the atomising fan.

Delivered fully assembled for quick and easy installation. Just wheel the HRSM portable cooling fan into position, fill it with water, and plug in for instant powerful cooling.

Activair portable evaporative cooling fan specification

Specification

Model   HRSM
Airflow cfm
m3/hr.
3180
5406
Supply voltage V 230
Supply current A 4
Nominal power W 900
Supply phase   1
Supply frequency Hz 50
Supply connection   3.6m lead fitted with
13A UK mains plug
Propulsion distance m
ft.
9
30
Max flow rate GPH
l/hr
30
137
Noise dBA 76
Width mm 637
Depth mm 637
Height mm 1037
Weight (empty) kg 37.5
Tank capacity Litres 68

Electricity supply requirements.

The HRSM portable evaporative cooling fan is designed for use with a 230V 50Hz electrical supply. It will work in the UK, most of Europe and the Middle East, but not the USA.

In the UK HRSM portable cooling fans are supplied ready to use, with a heavy duty 13A UK plug.

1 year warranty

The HRSM portable cooling fan is designed for continuous operation in industrial environments, and built to the highest standards. We are confident it will give years of trouble free operation. However in the unlikely event a fault does occur, it has a full 1 year return to base parts and labour warranty.

Video

  • Click the icon, for a video of the HSRM portable evaporative cooling fan working.play video clip

The HRSM portable evaporative cooling fan is ideal for fixed and temporary cooling in a wide range of applications. High quality components make the HRSM portable cooling fan exceptionally durable and reliable, yet it costs far less than many other comparable portable cooling fans available on the market.
