Evaporative spot cooling fan - DISCONTINUED ITEM

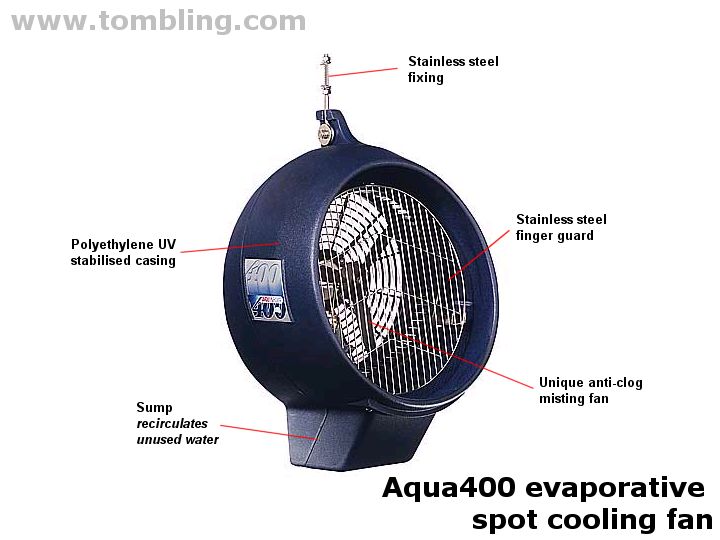

portable spot cooling fan
click to enlarge

This item is discontinued

If you need to spot cool workers or livestock indoors or outside, the Aqua400 evaporative spot cooling fan is the perfect solution. Designed to hang overhead – out of the way, the Aqua400 is compact, lightweight, and will cool areas of between 56 and 113 cubic meters (2000 – 4000 cu. ft.). Need a bigger unit ? - XE1500 evaporative cooling fan.

The Aqua400 evaporative spot cooling fan is easy to install because it doesn’t require a high pressure water pump or compressed air supply. Just connect it to an ordinary water supply and 13A electrical socket for instant evaporative cooling.

The Aqua400 propels a fine mist of water droplets upto 6m (20ft.) and features a unique self flushing fan that doesn’t need maintenance and won’t clog up.

Features

  • Designed to withstand humid and corrosive environments – manufactured from stainless steel and UV stabilised polyethylene
  • Easy to install – no water pumps or air lines, connects straight to an ordinary water supply
  • Safe – hangs overhead out of reach, fitted with stainless steel finger guards
  • Very economical to run – power consumption less than 80W
  • Virtually maintenance free – unique non-clog fan design
  • Optional fan oscillator – for coverage of up to 35m2 (1250sq. ft.)

Evaporative spot cooling for commercial applications

The Aqua400 evaporative spot cooling fan has been successfully used to cool horses and livestock, in garden centres and commercial glasshouses, and construction sites and warehouses.

Aqua400 cooling fans fitted with oscillators have also been successfully installed in beer gardens and outdoor eating areas.

Evaporative spot cooling fan - specification

Specification

Model   Aqua400
Airflow cfm
m3/hr.
710
1206
Supply voltage V 230
Supply current A 0.35
Nominal power W 81
Supply phase   1
Supply frequency Hz 50
Supply connection   3.5m lead fitted with
13A UK mains plug
Propulsion distance m
ft.
6
20
Max flow rate GPH
l/hr
2
7
Noise @ 3m dBA 61
Width mm 380
Depth mm 320
Height mm 520
Weight (empty) kg 3.8
Minimum area size sq.ft
m sq.
60
5.57
  DISCONTINUED

Warranty

The Aqua400 evaporative spot cooling fan is manufactured to the highest standards in the USA, and we are confident it will give years of trouble free operation. However in the unlikely event a fault does occur, it has a full 1 year return to base parts and labour warranty.

Electricity supply requirements

The Aqua400 evaporative cooling fan is designed for use with a 230V 50Hz electrical supply, and is suitable for use in the UK, most of Europe and the Middle East.

The Aqua400 cannot be used in countries that have 120V 60Hz electricity supplies, such as the USA.

Accessories included with Aqua400

The Aqua400 evaporative spot cooling fan is supplied with:

4.5m (15ft.) ¼” water line
3.5m (12ft.) power lead fitted with a 13A UK plug
Stainless steel hanging bracket
Comprehensive installation and operators guide

Optional fan oscillator

The AquaOsc fan oscillator turns the Aqua400 fan from a spot cooler into a versatile cooler for open areas. The AquaOsc oscillator slowly rotates the fan through a use selectable 60 to 360 degree sweep, evenly distributing the cool mist over a large area.

Optional fan oscillator
Aqua400 oscillator One per fan DISCONTINUED

Need more information?

What you should know:

  • Click the icon, for a video of the Aqua400 evaporative spot cooling fan working.play video clip

Related articles:

Quotations:

  • To receive a free written quotation within 24 hours, click on the red ‘CLICK for a Quote’ buttons in the tables above.

  • If you prefer to speak to someone, click on the ‘Call us now’ picture opposite.
Contact our sales dept.

The Aqua400 evaporative spot cooling fan is a powerful air cooler which has been designed to provide cooling outdoors and in well ventilated areas. Its unique non clog design and humidity and corrosion proof design make the Aqua400 perfect for use in commercial premises for spot cooling individuals or with an oscillator areas of up to 35m2 (1250sq.ft.)

Intended for commercial applications the Aqua400 is perfect for spot cooling horses and livestock, cooling warehouses and garden centres, or cooling the public in beer gardens, outside eating areas or sporting events.
