Mobile air conditioner

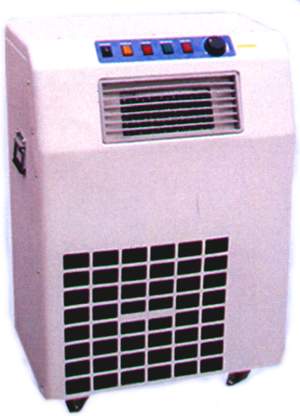

The MC20 is a compact, stylish 20,000BTU (5.9kw) air cooled mobile air conditioner that plugs into a standard 13A UK socket for instant cooling. It is robust enough for industrial applications but also unobtrusive and quiet enough to sit in any office. The MC20 mobile air conditioner is a versatile and economical solution to high temperatures in a wide range of industrial and commercial buildings.
Construction
The MC20 mobile air conditioner is manufactured in the UK. It has a strong 4mm
thick ABS case that
gives the unit a sturdy solid feel and makes it tough
enough to withstand knocks and blows. For near silent operation the case is
acoustically lined to absorb vibration and noise.The MC20 mobile air conditioner has a built in user adjustable thermostat and three fan speeds. For ease of transportation it is fitted with easy roll castors and carrying handles.
Air cooled mobile air conditioner
The MC20 is an air cooled air conditioner. The heat it removes from the room is vented outside via a 150mm (6in.) diameter flexible exhaust duct (similar to those found on domestic tumble driers), which can be upto 2.5m (8ft.) long.Ready to use mobile air conditioning straight from the box
The MC20 mobile air conditioner is ready to use straight from the box. It doesn’t need any specialist installation or setting up. Plug it in, feed the exhaust hose outside and turn on for instant air conditioning.Specification |
||
| Model | MC20 | |
| Cooling output | BTU Kw |
20,000 5.9 |
| Airflow | cfm m3/hr. |
575 980 |
| Supply voltage | V | 230 |
| Supply current | A | 8.6 |
| Nominal power | W | 2000 |
| Supply phase | 1 | |
| Supply frequency | Hz | 50 |
| Supply connection | 2m lead fitted with 13A UK mains plug |
|
| Refrigerant | R417A | |
| Exhaust Length Diameter |
m mm |
2.5 150 |
| Fan speeds | low, medium, high | |
| Weight | Kg | 60 |
| Width | mm | 686 |
| Depth | mm | 407 |
| Height | mm | 864 |
|
||
Activair mobile air conditioners are manufactured in the UK
Electricity supply requirements.
The MC20 mobile air conditioner is designed for use with a 230V 50Hz electrical supply. It will work in the UK, most of Europe and the Middle East, but not the USA.In the UK it is supplied ready to use with a standard 13A UK plug.
Selecting a mobile air conditioner
Before purchasing a mobile air conditioner, a heat load calculation should be
carried out.
2 year warranty
The MC20 mobile air conditioner is built in the UK to the highest standards. We are confident it will give years of trouble free operation. However in the unlikely event a fault does occur, it has a full 2 year parts and labour warranty.
Further information and quotations
The MC20 mobile air conditioner is robust enough for industrial use, yet quiet and unobtrusive enough to fit into any office. It is easily wheeled into position, and plugs into a 13A socket for instant air conditioning.For further information contact our sales team, or for a quotation click on the red quote button above.
