Commercial air conditioning

These products are discontinued and no longer available

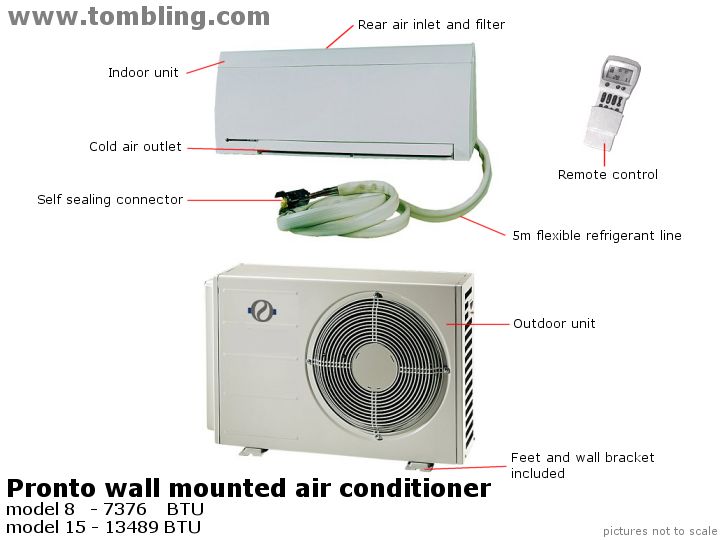

Pronto commercial air conditioning unit
click for a larger picture

With its flexible refrigerant lines and self-sealing Aeroquip connectors, the Pronto commercial air conditioner sets new standards for ease of installation. No specialist skills or equipment are required. It is easily fitted to an external wall, the flexible line only has to be fed through a small hole and connected to the outdoor condenser to complete the installation.

Ideally suited to providing a cool, comfortable environment in commercial buildings, the Pronto also incorporates a heat pump for efficient heating during cold spells, and a dehumidifier function.

Features

  • Cooling and heating – two models available
  • Easy DIY installation – no need for specialist skills or tools. Installs in less than a day
  • Attractive compact design – blends into any workplace, office, shop, etc.
  • Very quiet – 3 fan speeds plus extra quiet night mode
  • Infra red remote control – programme all modes and settings from the handset
  • Automatic operation – comfort levels are achieved automatically
  • Air filter – built in filter removes pollen and dust

Cost effective commercial air conditioning

The innovative, easy-to-install Pronto commercial air conditioner with its easi-fit ‘do it yourself’ installation brings cost effective fixed air conditioning to a whole range of commercial buildings, which previously could not afford it. The Pronto can be installed one room at a time with minimum disruption, allowing additional units to be added as and when the need arises or the budget permits.

Pronto commercial air conditioning specification

Specification

Model   Pronto 8 Pronto 15
Cooling capacity BTU
Kw
7376
2.16
13489
3.95
Heating capacity BTU
Kw
7172
2.10
13660
4.00
Airflow cfm
m3/hr.
211
360
300
510
Supply voltage V 230 230
Power consumption - cooling  W 660 1490
Power consumption - heating W 655 1500
Supply phase   1 1
Supply frequency Hz 50 50
Fan speeds   3 3
COP   3.21 2.67
EER   3.27 2.65
Energy efficiency class
cooling/heating
  A/C D/E
Refrigerant   R410a R410a
Noise level (internal) db 49 49
Weight indoor/outdoor Kg 10/34 10/38
Width indoor/outdoor mm 880/810 880/810
Depth indoor/outdoor mm 165/220 165/220
Height indoor/outdoor mm 350/530 350/530
Flexible refrigerant line length m 5 5


1 year warranty

The Pronto commercial conditioner is manufactured in the EU to the highest standards, and we are confident it will give years of trouble free operation. However in the unlikely event a fault does occur, it has a full 1 year return to base parts and labour warranty.

Electricity supply requirements

The Pronto commercial air conditioner is designed for use with a 1 phase 230V 50Hz electrical supply, and is suitable for use in the UK, most of Europe and the Middle East.

It is not suitable for use in countries that use 60Hz electricity supplies, such as the USA.

Need more information?

What you should know:

Needing no special tools or skills the Pronto commercial air conditioner sets new standards for ease of installation with its flexible refrigerant lines and self sealing connectors. The Pronto can be quickly installed in most commercial buildings to provide a fast and economic solution to overheated workplaces.
